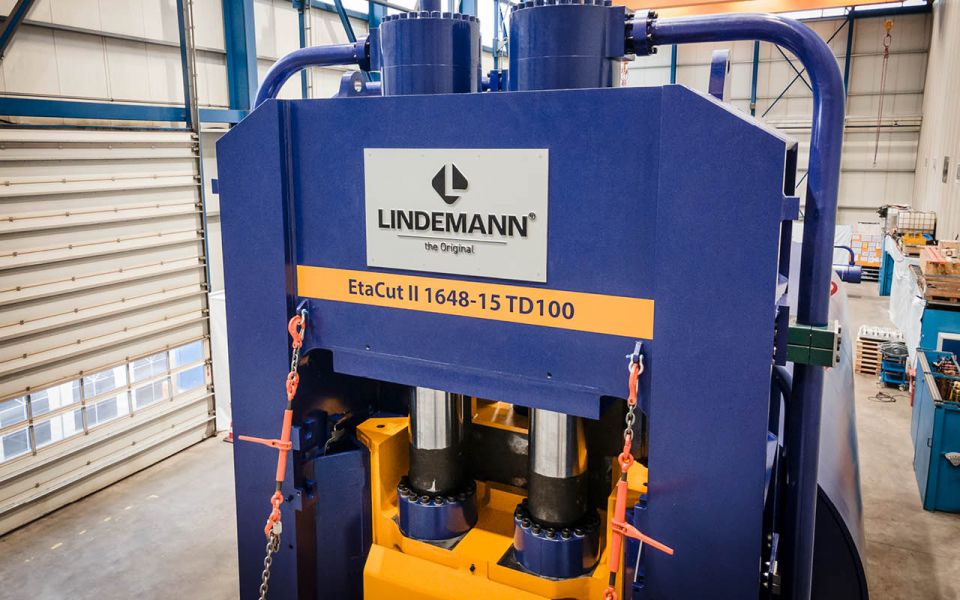

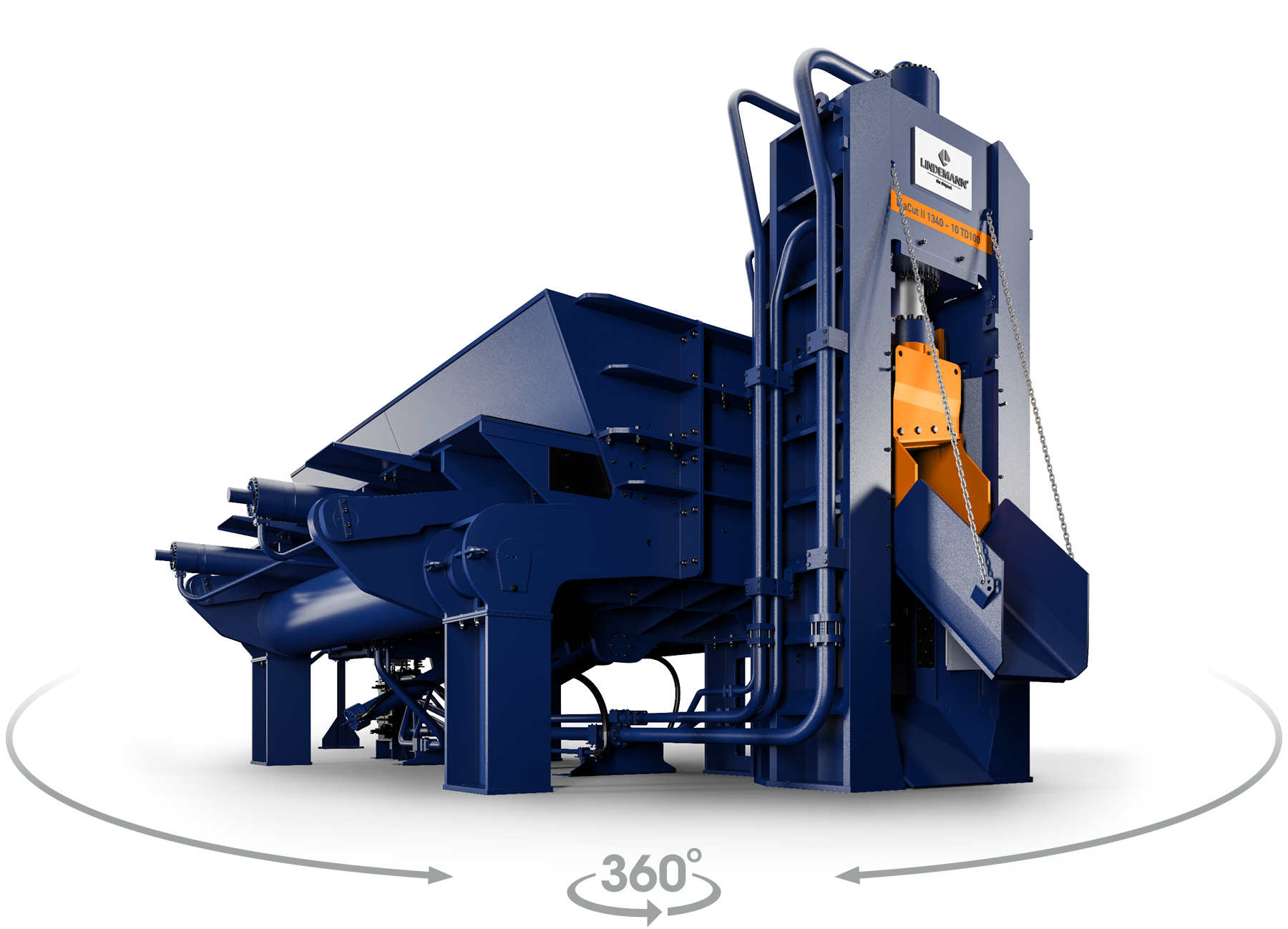

LINDEMANN EtaCut II Scrap Metal Shear
LINDEMANN
EtaCut II scrap Metal Shear
Heavy-duty side compression Shear
The scrap metal shear with highest capacity and availability. Enhanced operational reliability and reduced maintenance costs.
The name LINDEMANN EtaCut II incorporates the Greek letter η (eta), the technical symbol for efficiency which illustrates the extremely high effectiveness and low lifecycle costs of the Eta product lines.
None’s
stronger!

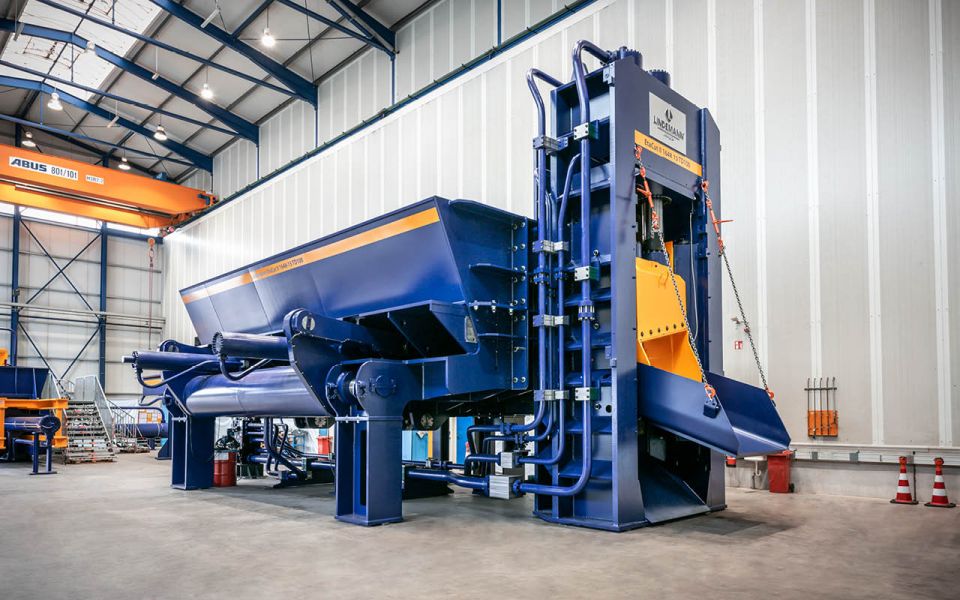

The EtaCut II metal shear is the most powerful and durable generation of heavy scrap shears. It stands for efficiency and low lifecycle costs. Both are reflected in the highest throughput rates and fastest cycle times worldwide in relation to the installed drive power. In addition, its extraordinary reliability and low maintenance costs are inspirational: all wear-intensive areas are fitted with bolted wear plates that can be changed out quickly and easily.
-
800 – 1,600 t shearing force
-
340 – 480 t stamper force
-
800 – 1,500 mm blade width
-

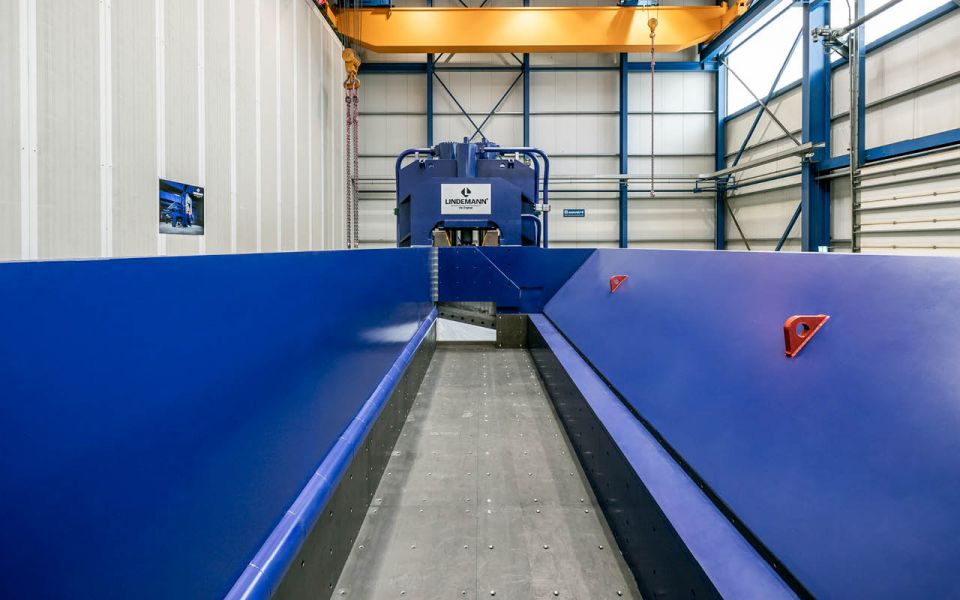

8 – 10 m box length
-
340 – 500 t side compression force
-
270 – 545 t lid force
-
Throughput/hour up to 87 t
-
Options for specific requirements
Features
Always a
Cut Ahead
All features of the LINDEMANN product line for maximum durability, performance, efficiency and maintainability

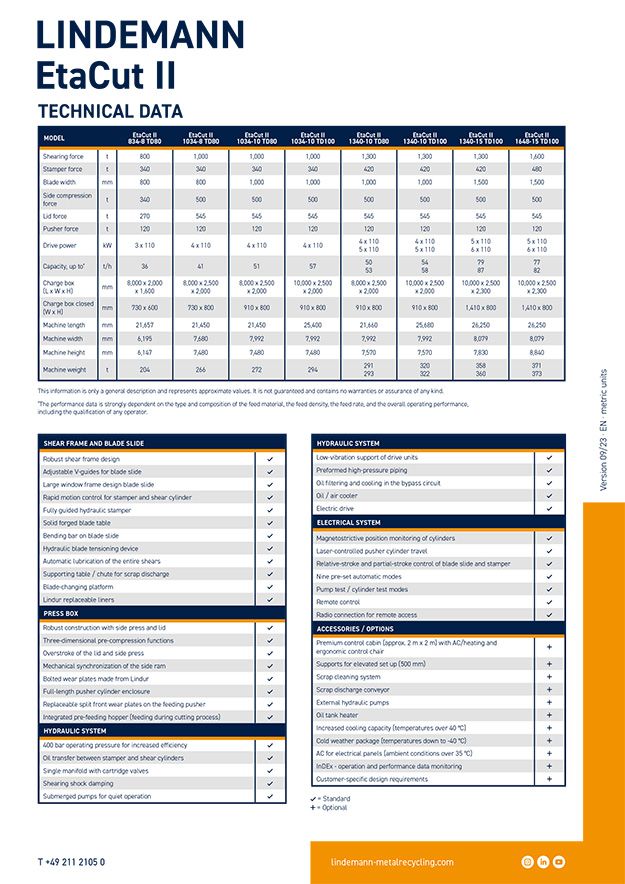

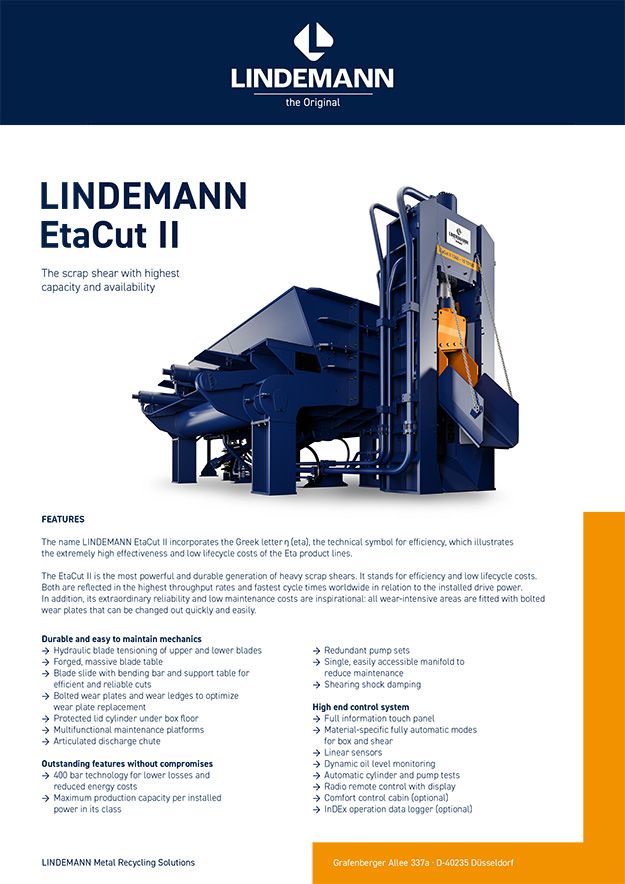

Data Sheet EtaCut II

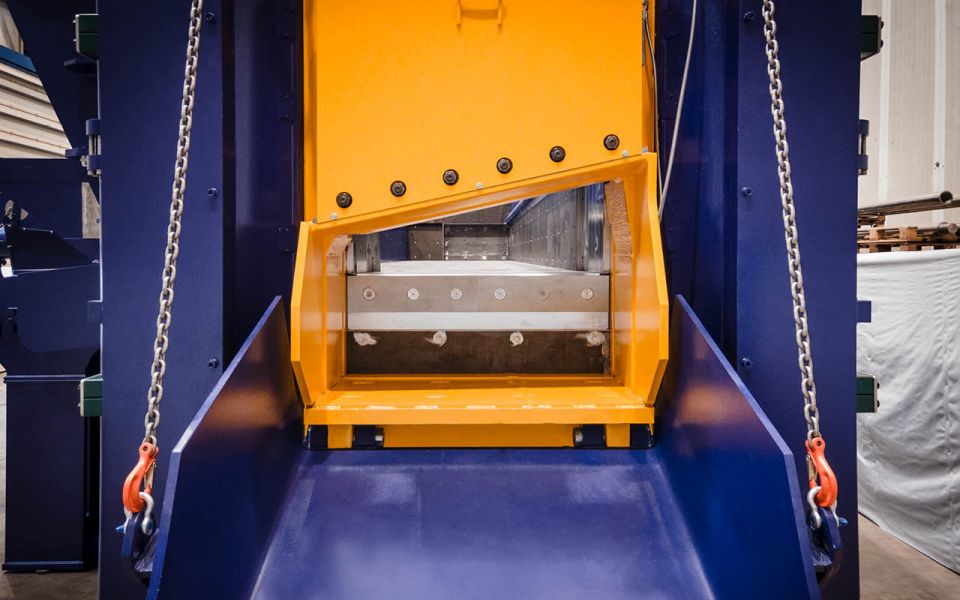

BLADE SLIDE
- Integrated bending beam bends the scrap before cutting and increases cutting capacity up to 30%
- Supporting table ensures reliable short cuts
- Easily adjustable guide rails ensure precise cuts and maximum availability
HYDRAULICS
- Maximum efficiency class with reliable 400 bar technology
- A central control valve block for simpler maintenance
- Lower energy losses as a result of fewer connections and powerregulated pumps
- Utilisation of the return oil for best energy exploitation and power
HYDRAULIC BLADE TENSIONING DEVICE
- Holds blades reliably in place during cutting process
- Simplifies loosening of the bolts for maintenance
IMPROVED MAINTENANCE
- Bolted wear plates to simplify and accelerate maintenance
- Unit does not need to be disassembled to exchange the wear plates
MACHINE SELF-TEST
- Automatically conducted pump and cylinder tests
- Early detection of defects and faults
- Needs-oriented maintenance
SELECTABLE FULLY AUTOMATIC OPERATING MODES
- Best performance thanks to optimised motion control
